Description

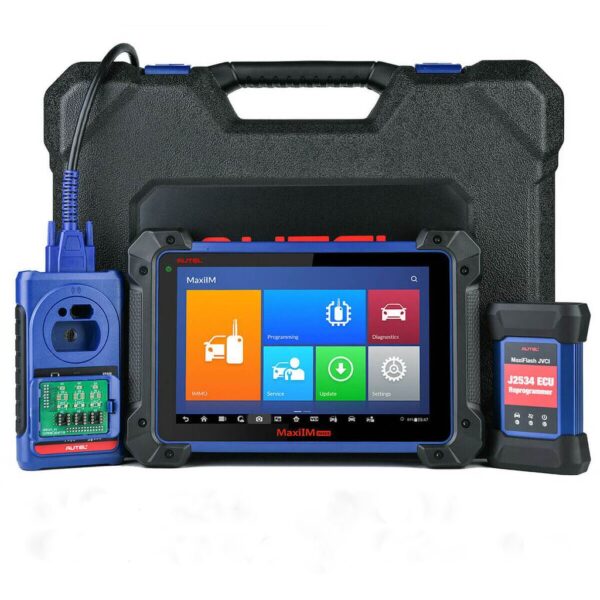

AUTEL MaxiIM IM608 (formerly Auro IM600) is one of the most advanced all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics similar to OEM tools, and advanced services in one Android based 10.1-inch touchscreen tablet. It comes with XP400 key programmer. You also get MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions.
Advanced IMMO & KEY PROGRAMMING:

Read PIN/CS (All Key Lost)
IMMO ECU Reset / Adaptation / Refresh / Coding
Key Generation
Key Learning / Remote Learning
Backup / Restore IMMO data
BENZ 3rd Generation IMMO Add Key, All Key Lost, Key Learning
BMW FEM / BDC Key Learning and ECU Adaptation
BMW CAS4 / CAS3 / CAS2 Key Learning
VW, AUDI MQB Key Learning, 48 Transponder (96-Bit) Add Key, All Key Lost, A6 All Key Lost

XP400 Key & Chip Programming:

Read / Write Transponder Data
Read / Write MC9S12 Encryption Chip
Read / Write IC Card
Read / Write ECU / MCU / EEPROM Data
Read / Write Mercedes Infrared Key
Detect Remote Frequency

All Systems Diagnostics:

OE Level Diagnostics
80+ Vehicle Makes
MaxiFlash ECU Programmer
Advanced Maintenance Services:

All Special functions, EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID relearn, etc, ECU Coding

All Features:

Powerful Cortex A7+A15 six-core processor
10.1-inch LED capacitive touch screen with 1920×1200 resolution
Internal reliable 64GB On-board Memory for better performance
Built-in 8-megapixel rear camera with auto-focus and flashlight
802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
Open source Android Operating System for fast boot-up and multitasking
Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services
Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage
Smart mode for guided and automated key learning
Expert mode for advanced key learning
Read PIN/CS (all key lost), generate key, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency
Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.

Specifications:

Operating System: AndroidTM 4.4.2, KitKat
Processor: Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64GB On-board Memory
Display: 10.1-inch LED capacitive touch screen with 1920×1200 resolution
Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Camera (rear): 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 15000 mAh 3.8 V lithium-polymer battery; Charging via 12V AC/DC power supply with the temperature between 0øC and 45øC
Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W
Operating Temp.: 0 to 50øC (32 to 122øF)
Storage Temp.: -20 to 60øC (-4 to 140øF)
Dimensions (W x H x D): 300 mm (11.81?) x 220 mm (8.66?) x 50 mm (1.97?)
Weight: NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.)
Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle-speed, Low-speed and Single-wire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Includes:

IM608 / XP400 Key Programmer
MaxiFlash JVCI / Cables & Cords
AC/DC Adapter / Carry Case
