Description
This device is a new android-based vehicle trouble diagnostic tool developed for internet applications. It inherits traits from OBDSTAR advanced diagnostic technology and it is characterized by covering wide range of vehicles, featuring a powerful and fast function, and providing precise results. Through the vehicle diagnostic OBDII connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnostics for full car models and full vehicle systems. Meanwhile, taking advantage of mobile internet access this device integrates more applications and services such as a Maintenance Database, remote assistant, & One Key Upgrade etc.

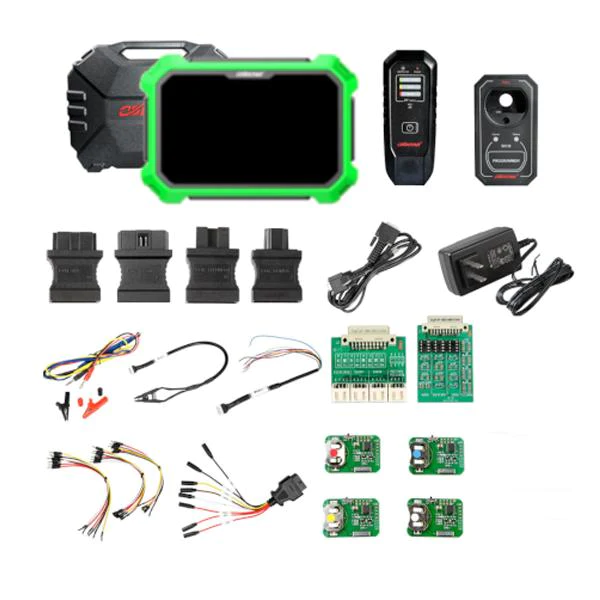

PACKAGE – C
- Immobilizer +mileage correction +diagnosis +special function(oil reset +ABS +battery matching +ECU programming +EPB +throttle programming +airbag reset +TPMS +steering angle reset +OBDII +DPF + injector code +supension matching +gear learning +CVT learning +EEPROM +key renewing +ECU cloning) adapter(P001 programmer +C001 circuit board +C002 circuit board +W001 data cable +W002 data cable +W003 data cable +converter) +others(ignition coil +remote tester)
Hardware Specifications
– Built-in VCI box
– 8-inch touchscreen
– Charge directly via OBD interface
– Practical and high-end gift box
– Industrial design with silicone case
– Back bracket design:prop on the steering wheel or stand on the table
– With 4 Toyota simulation keys (the fifth is coming soon)
– P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
– Add the clip of reading SOP 8PIN EEPROM
– C001/C002 circuit board to read and write chip data with welding
– IMMO induction coil to detect the key induction coil failure of the vehicle.
– Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
Software Specifications
– IMMO
– EEPROM
– Renew Key
– Key programming
– Remote programming
Technical Parameter
● Operation system: Android 5.1.1
● CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
● Battery: 3700mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity: 1GB
● Storage capacity: 32GB
● LCD: 8.0 inch
● LCD resolution: 1280*800
● Touch screen: Capacitive touch screen
● Camera: 5 mega rear view camera
● Wi-Fi: Supported
● Working temperature: -10℃ ~ 55℃（14℉ ~ 131℉)
● Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉)
● Weight: Around 1.0 Kg
● Dimension: 254 mm*174 mm*35 mm
