OBDSTAR – MP001 SET FOR DC706

OBDSTAR MP001 Kit with ECU Bench Jumper

Includes:

• OBDSTAR MP001 Kit with MO001 Programmer
• OBDSTAR ECU Bench Jumper

OBDSTAR MP001 Kit

MP001 is the latest automotive multi-function programmer developed by OBDSTAR. It fully supports EEPROM/MCU reading and writing/cloning/data processing for automobiles, commercial, new energy, motorcycles, marine (motorboats), etc., and is compatible with the P002 adapter (Toyota/Ford all-in-one adapter, Honda/Yamaha/Suzuki all-in-one adapter) and P003 adapter (some models of engine/gearbox clone K/CAN conversion, BOOT mode reading and writing) functions.

Software Function:

• EEPROM/MCU reading and writing
• Key flashing
• Steering angle repair
• Body computer data processing
• Immo off
• Pincode reading
• Battery module repair
• Instrument repair
• More functions are under development.

Specification:

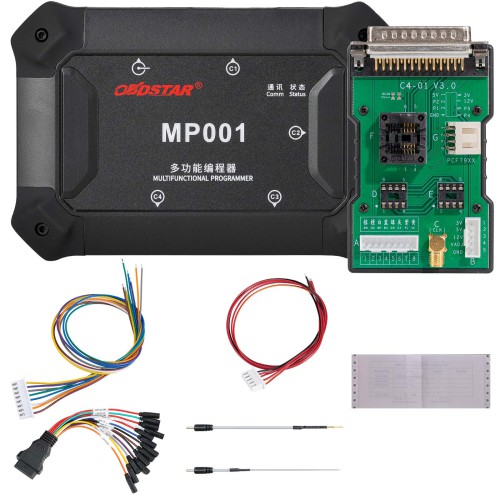

Package List:

• W004 cable
• W005 cable
• W006 cable
• C4-01 board
• C4-02 board
• W003 cable
• W007 clip cable

Note:

• Different tablet device models require different configuration software.
• To use MP001 programmer, you must have ECU bench jumper cables.

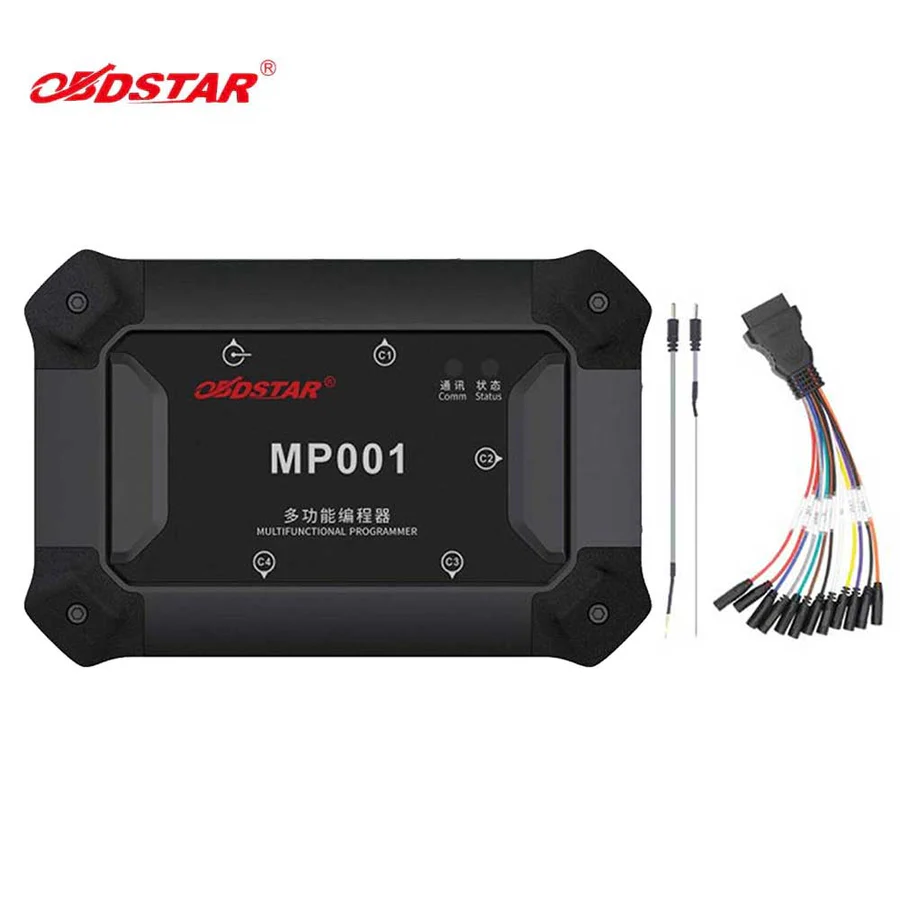

OBDSTAR ECU Bench Jumper for OBDSTAR MP001 Programmer

To use MP001 programmer, you must have ECU bench jumper cables.
