OBDSTAR P003 Adapter With ECU Bench Cables For DC706
manufacturer OBDSTAR
make P003 ECU CABLE KIT

Description

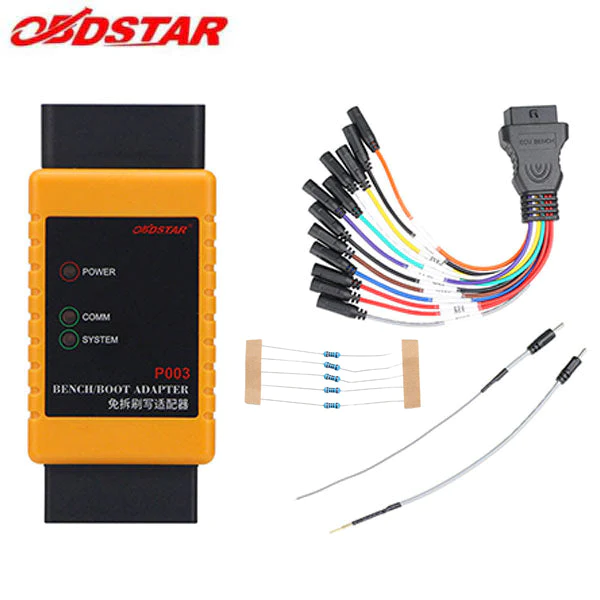

INCLUDES:

  • 1pc x P003 adapter
  • 1pc x ECU BENCH jumper
  • 5pcs x 120 ohm resistors
  • 1pc x Boot jumper(spring needle)
  • 1pc x Boot jumper(welding)

How to connect the P003 adapter and ECU BENCH cables with OBDSTAR tablet devices?
P003 adapter and ECU BENCH cables connection method
1. Diag cable OBD connector(male)
2. Connect P003 connector(female)
3. P003 adapter
4. Boot jumper(spring needle)
5. Boot jumper(welding)
6. ECU pin connector
7. ECU boot connector
8. 12V power

Bench Mode:
Step 1: Connect 1, 2, 3 together as pic below;
Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 12V power with diagnostic device;
Step4: read data

Boot Mode:
Step 1: Connect 1, 2, 3 together as pic below;
P003 adapter and ECU BENCH cables connection method
Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 7 with 4 or 5 and connect it to ECU;
Step4: connect 12V power with diagnostic device;
Step5: read data on diagnostic device.





Supports ECU List:

BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

Weight 1.0 lbs
Dimensions 8 × 8 × 2 in
