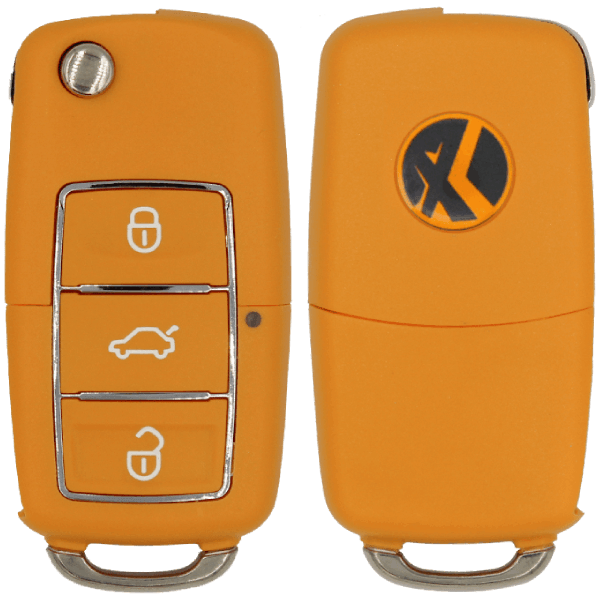

XHORSE VVDI WIRED UNIVERSAL REMOTE 3B FLIP STYLE FOR VW B5 STYLE XKB505EN

3-Button VW Type Remote: Lock, Unlock Trunk

Instructions for Use:

1. Open remote and remove battery
2. Connect data cable to white connector on remote PCB board and plug into VVDI Key Tool
3. Using the VVDI Key Tool, select Product Remote and select the remote you would like to generate
4. Disconnect cable, reinsert battery, and reassemble remote. Install proper chip and blade for your application.
5. Program remove to vehicle as you would an OEM remote

PLEASE NOTE THAT THESE REMOTES DO NOT COME WITH BATTERIES INCLUDED. YOU WILL NEED TO HAVE THE CR2032 BATTERY READY TO INSTALL YOURSELF.

Note: You may encounter issues programming newer batches of Xhorse remotes if you’re using the original VVDI Key Tool. Xhorse no longer supports the original Key Tool, and your machine might falsely identify your remote as being region restricted. If you have a Key Tool Mini or Max and you’re experiencing region lock errors, please submit your machine serial number to Xhorse via the Xhorse app and ask for the region lock to be lifted. Takes about 24 hours. Please speak to your sales rep about upgrading to the Key Tool Mini or Key Tool Max if you’re still using the original machine.
