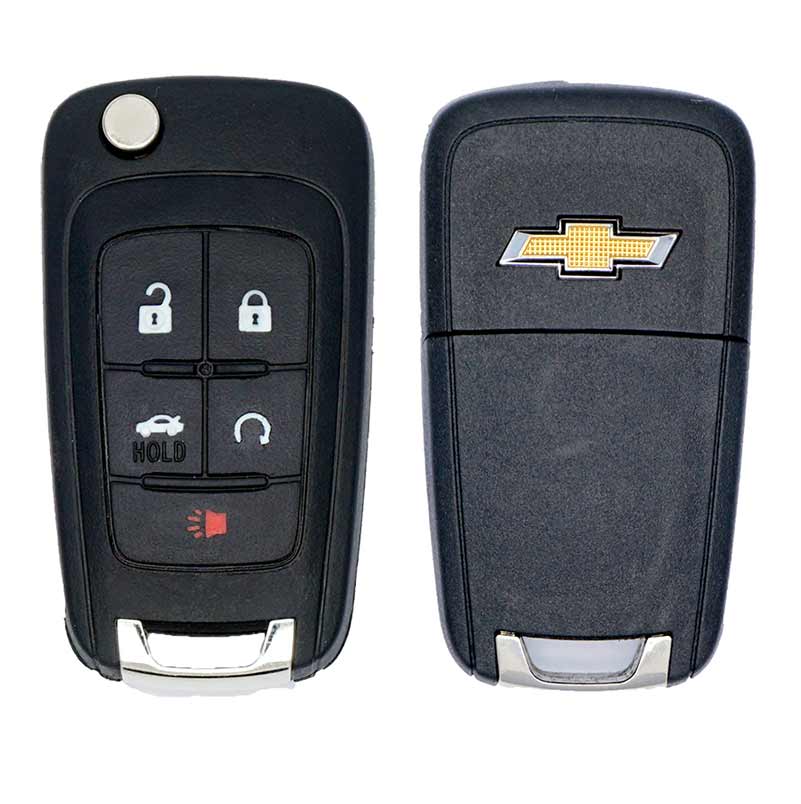

| manufacturer | General Motors |
| make | Chevrolet |
| fcc id | OHT01060512 |
| ic id | 5461A-01060512 |
| oem part number | 20835404 20873620 |
| strattec number | 5912545 |
| frequency | 315MHz |
| number of buttons | 5 |
| reusable | Yes, After Unlocking |
| battery size | CR2032 |
| compatibility | 2010-2016 Chevrolet Camaro 2012-2013 Chevrolet Camaro Convertible 2011-2015 Chevrolet Cruze 2010-2019 Chevrolet Equinox 2014-2019 Chevrolet Impala 2013-2016 Chevrolet Malibu 2012-2017 Chevrolet Sonic 4 Door |
| keyway | High Security |
| code series | Z0001-Z6000 |
| keyway ilco | HU100 |
| keyway jma | OP-11 |
Automotive Locksmith or Dealer Programming. Self programming is possible with one working already programmed remote for certain years.
1. Get in the vehicle and close all the doors.
2. Using a working original key, insert the key into the ignition and switch to the ON position as far as it will go without starting the vehicle, WAIT 5 SEC/ OR THE PADLOCK LIGHT ON THE DASH GOES OUT. then switch OFF.
3. Remove the key from the ignition.
4. Insert the new key into the ignition and switch to the ON position as far as it will go without starting the vehicle. WAIT 5 SEC / / OR THE PADLOCK LIGHT ON THE DASH GOES OUT.
5. The key is now programmed.
6. Test the key to ensure that it starts the vehicle. If the key did not program, restart the programming procedure from STEP 1. To program additional keys, repeat the entire procedure.
All Transmitters Carry a 30 Day Standard Warranty Against Electronic Defect.
